A guide to Configuring Hyper-V Replication in Windows Server 2016

The process of replication requires a primary and a secondary host. A VSS writer is a mechanism that creates application-consistent backups & here on the primary host, it creates a snapshot of the virtual machine. This snapshot is then copied to secondary host by the Replica function. By this, the data center administrator is allowed to have a standby server with replication of the VMs at an instant notice. Using HTTP and a high-end PC as the secondary host, the tool enables the replication of VMs across the internet as well. This is how administrators store VM copies economically off-site.

Sometimes you might keep only one spare VM copy that could be run when the original fails to run. By Implementation of high availability, you have one example of a virtual machine. The software running inside the VM is not safe from corruption by high availability. You may copy the machine regularly to tackle the issue of software corruption. You can backup VM & its storage. Although it is a good practice, but it is time-consuming and resource instensive. Also because you have backup again and again, you cannot have an exact copy of that VM.

What’s new in the Hyper-V on Windows Server 2016

  • Compatible with Connected Standby
  • Discrete device assignment
  • Encryption support for the operating system disk in generation 1 virtual machines
  • Host resource protection
  • Hot-add and remove for network adapters and memory
  • Hyper-V Manager improvements
  • Integration services delivered through Windows Update
  • Linux Secure Boot
  • More memory and processors for generation 2 virtual machines and Hyper-V hosts
  • Nested virtualization
  • Networking features
  • Production checkpoints
  • Rolling Hyper-V Cluster upgrade
  • Shared virtual hard disks
  • Virtual machine backup
  • Shielded virtual machines
  • Start order priority for clustered virtual machines
  • Storage quality of service (QoS)
  • Virtual machine configuration file format
  • Virtual machine configuration version
  • Virtualization-based security for generation 2 virtual machines
  • Windows Containers
  • Windows PowerShell Direct

Requirements

2 physical machines, one with Hyper_V_01 2nd with Hyper_V_02

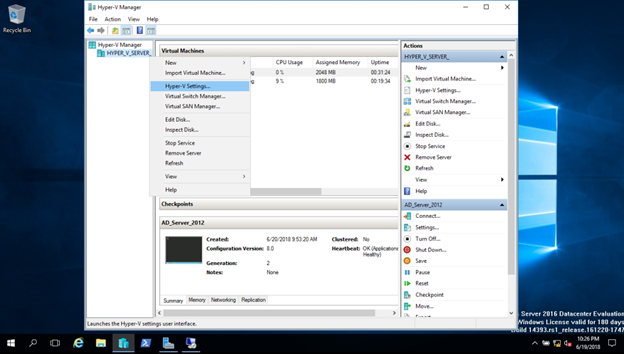

1- On the first machine Hyper_V_01, open Hyper-V manager, find Hyper_V_01 & right click it, now in the options, click on Hyper-V settings

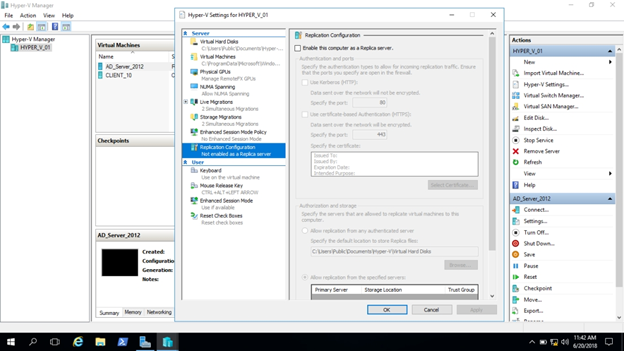

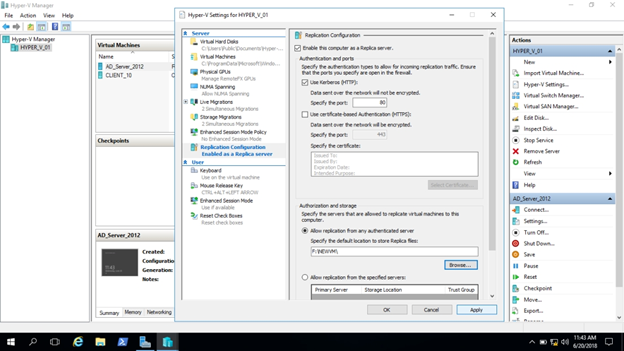

2- Now, click on replication configuration & now check box ✔️ Enable this computer as a replica server

Check ✔️ the first option Use Kerberos (HTTP) in the authentication & ports section.

Enter address F:\NEWVM-Replica\ in the Authorization & storage section, then click OK.

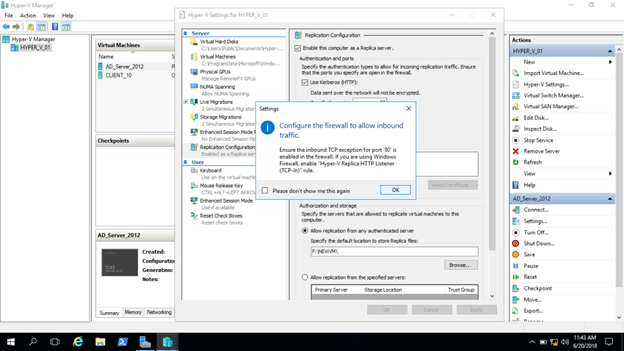

3- A settings dialog box appears, click OK

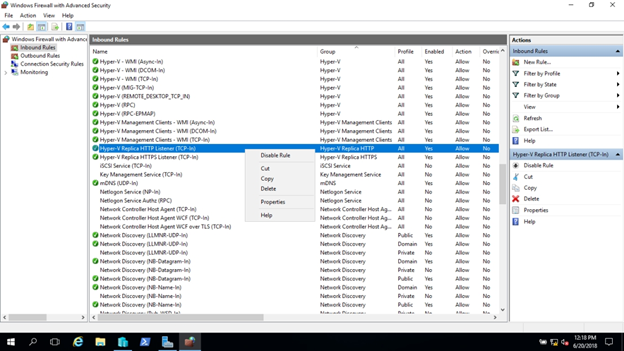

4- Now, Go to Windows Firewall & right click to enable the disabled rule for Hyper-V Replica HTTP Listener (TCP-In)

5- On the second machine with Hyper_V_02, repeat the above processes.

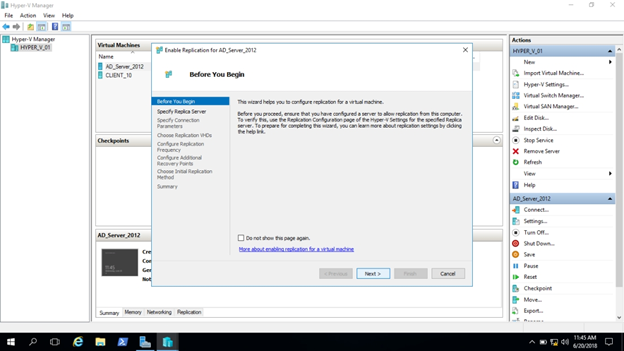

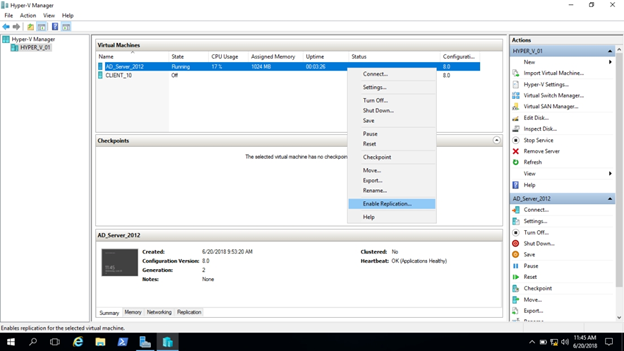

6- On the first machine Hyper_V_01, open Hyper-V manager and right click on AD_Server_2012 VM, then enable replication & then click Next

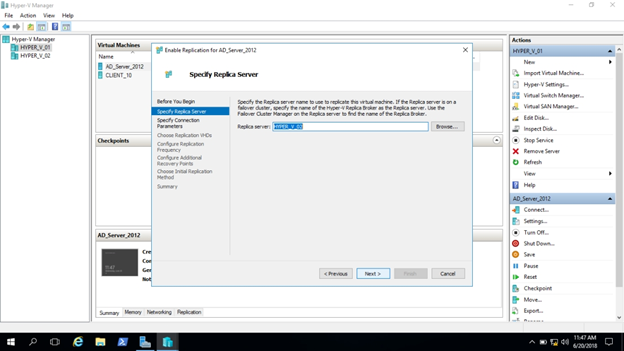

7- Now on the Specify Server Replica Interface, Browse & select Hyper_V_02 & click Next.

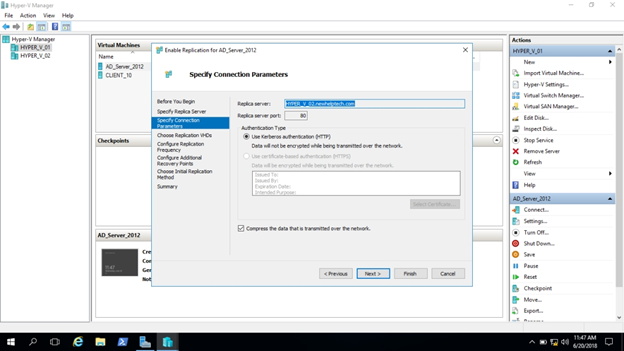

8- Now on the Specify Connection Parameters, make sure that Use Kerberos authentication (HTTP) & click Next

9- Now, on the Choose VHD’s Replication interface, make sure to select VM and Click Next

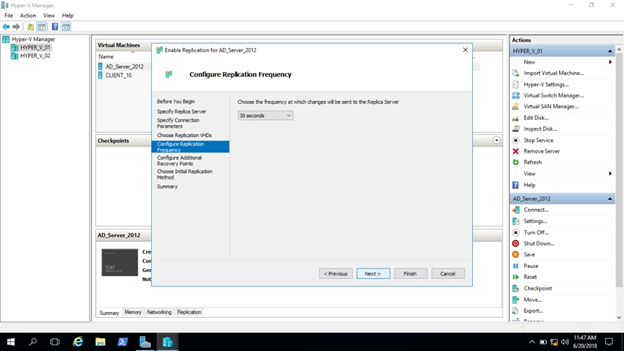

10- Now, on the Configure Replication Frequency interface, open drop-down list box and select 30 seconds, and then click Next

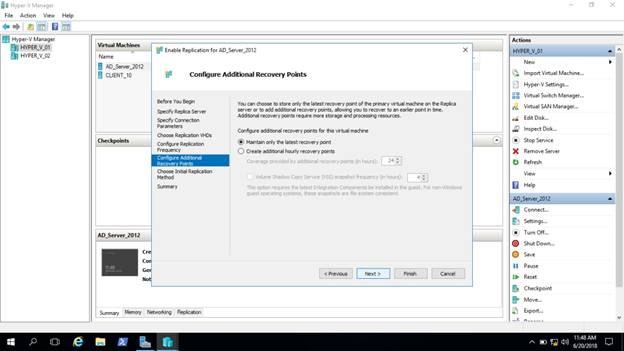

11- Now, on the Configure Additional Recovery Points interface, select the first option Maintain only the latest recovery point, and then click Next

12- Now On the Choose Initial Replication Method interface, click the first option Send initial copy over the network and select Start replication immediately, and then click Next

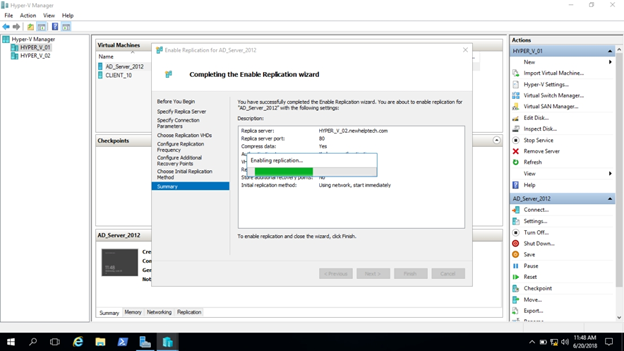

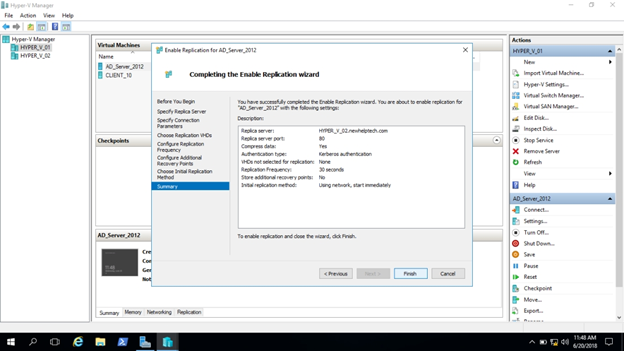

13- Now the Enable Replication Interface is completed, click on Finish

14- Wait for the replication.

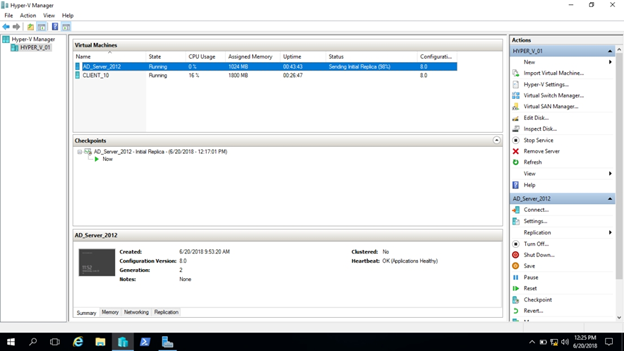

The progress of initial replication can be monitored in the status column in the Hyper-V console.

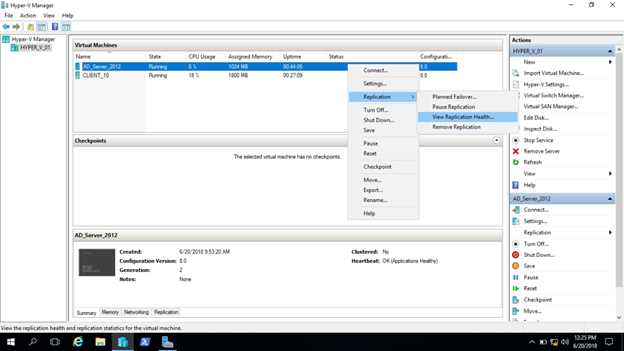

15- Now right click VM, select replication and click view replication health. It will validate the replication

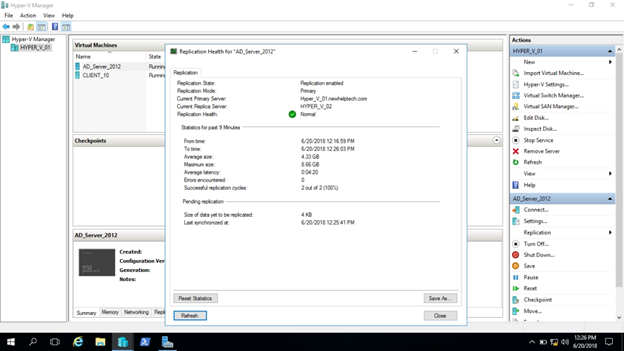

16- Lastly you can see an interface that verifies that there are no errors.

Maryam Alam
