Everything about locking in SQL Server

Locking is crucial to palmy SQL Server transactions process and it’s designed to permit SQL Server to figure seamlessly in an exceedingly multi-user setting. Lockup is that the approach that SQL Server manages dealing concurrency. Basically, locks square measure in-memory structures that have house owners, types, and therefore the hash of the resource that it ought to defend. A lock as associate in-memory structure is ninety six bytes in size.

To understand higher the lockup in SQL Server, it’s vital to know that lockup is intended to confirm the integrity of the info within the information, because it forces each SQL Server dealing to pass the assessment.

ACID test consists of four necessities that each dealing got to pass successfully:

  • Atomicity – needs that a dealing that involves 2 or a lot of separate elements of knowledge should commit all elements or none
  • Consistency – needs that a dealing should produce a sound state of latest knowledge, or it should roll back all knowledge to the state that existed before the dealing was dead
  • Isolation – needs that a dealing that’s still running and didn’t commit all knowledge nevertheless, should keep isolated from all alternative transactions
  • Durability – needs that committed knowledge should be keep victimization technique which will preserve all knowledge in correct state and offered to a user, even just in case of a failure

SQL Server lockup is that the essential a part of the isolation demand and it serves to lock the objects suffering from dealing. Whereas objects square measure fast, SQL Server can forestall alternative transactions from creating any amendment of information keep in objects suffering from the obligatory lock. Once the lock is free by committing the changes or by rolling back changes to initial state, alternative transactions are allowed to create needed knowledge changes.

Translated into the SQL Server language, this suggests that once a dealing imposes the lock on associate object, all alternative transactions that need the access thereto object are forced to attend till the lock is free which wait are registered with the adequate wait kind

SQL Server locks may be fixed via the lock modes and lock roughness

Lock modes:
Lock mode considers varied lock sorts that may be applied to a resource that must be locked:

  • Exclusive (X)
  • Shared (S)
  • Update (U)
  • Intent (I)
  • Schema (Sch)
  • Bulk update (BU)

Exclusive lock (X) – This lock kind, once obligatory, can make sure that a page or row are reserved solely for the dealing that obligatory the exclusive lock, as long because the dealing holds the lock.

The exclusive lock are obligatory by the dealing once it needs to change the page or row knowledge, that is within the case of DML statements DELETE, INSERT and UPDATE. Associate exclusive lock may be obligatory to a page or row as long as there’s no alternative shared or exclusive lock obligatory already on the target. This much means only 1 exclusive lock may be obligatory to a page or row, and once obligatory no alternative lock may be obligatory on fast resources

Shared lock (S) – this lock kind, once obligatory, can reserve a page or row to be offered just for reading, which suggests that the other dealing are prevented to change the fast record as long because the lock is active. However, a shared lock may be obligatory by many transactions at a similar time over a similar page or row and in this approach many transactions will share the power for knowledge reading since the reading method itself won’t have an effect on anyhow the particular page or row knowledge. Additionally, a shared lock can enable write operations, however no DDL changes are allowed

Update lock (U) – this lock {is similar |is associate logo is comparable} to an exclusive lock however is intended to be a lot of versatile in an exceedingly approach. Associate update lock may be obligatory on a record that already contains a shared lock. In such a case, the update lock can impose another shared lock on the target row. Once the dealing that holds the update lock is prepared to alter the info, the update lock (U) is reworked to associate exclusive lock (X). It’s vital to know that update lock is asymmetrical with reference of shared locks. whereas the update lock may be obligatory on a record that has the shared lock, the shared lock can’t be obligatory on the record that already has the update lock

Intent locks (I) – this lock could be a means that employed by a dealing to tell another dealing concerning its intention to accumulate a lock. the aim of such lock is to confirm knowledge modification to be dead properly by preventing another dealing to accumulate a lock on succeeding in hierarchy object. In apply, once a dealing needs to accumulate a lock on the row, it’ll acquire associate intent lock on a table, that could be a higher hierarchy object. By getting the intent lock, the dealing won’t enable alternative transactions to accumulate the exclusive lock on it table (otherwise, exclusive lock obligatory by another dealing would cancel the row lock).

This is a very important lock kind from the performance facet because the SQL Server information engine can examine intent locks solely at the table level to envision if it’s potential for dealing to accumulate a lock in an exceedingly safe manner in this table, and thus intent lock eliminates have to be compelled to examine every row/page lock in an exceedingly table to create certain that dealing will acquire lock on entire table

There square measure 3 regular intent locks and 3 alleged conversion locks:

Regular intent locks:
Intent exclusive (IX) – once associate intent exclusive lock (IX) is no heritable it indicates to SQL Server that the dealing has the intention to change a number of lower hierarchy resources by getting exclusive (X) locks singly on those lower hierarchy resources

Intent shared (IS) – once associate intent shared lock (IS) is no heritable it indicates to SQL Server that the dealing has the intention to scan some lower hierarchy resources by getting shared locks (S) singly on those resources lower within the hierarchy

Intent update (IU) – once associate intent shared lock (IS) is no heritable it indicates to SQL Server that the dealing has the intention to scan a number of lower hierarchy resources by getting shared locks (S) singly on those resources lower within the hierarchy. The intent update lock (IU) may be uninheritable solely at the page level and as shortly because the update operation takes place, it converts to the intent exclusive lock (IX)

Conversion locks:
Shared with intent exclusive (SIX) – once uninheritable, this lock indicates that the dealing intends to scan all resources at a lower hierarchy and so acquire the shared lock on all resources that square measure lower in hierarchy, and successively, to change a part of those, however not all. In doing therefore, it’ll acquire associate intent exclusive (IX) lock on those lower hierarchy resources that ought to be changed. In apply; this suggests that after the dealing acquires a SIX lock on the table, it’ll acquire intent exclusive lock (IX) on the changed pages and exclusive lock (X) on the changed rows.

Only one shared with intent exclusive lock (SIX) may be uninheritable on a table at a time and it’ll block alternative transactions from creating updates, however it’ll not forestall alternative transactions to scan the lower hierarchy resources they’ll acquire the intent shared (IS) lock on the table

Shared with intent update (SIU) – this can be a touch a lot of specific lock because it could be a combination of the shared (S) and intent update (IU) locks. A typical example of this lock is once dealing is employing a question dead with the PAGELOCK hint and question, then the update question. once the dealing acquires associate SIU lock on the table, the question with the PAGELOCK hint can acquire the shared (S) lock whereas the update question can acquire intent update (IU) lock

Update with intent exclusive (UIX) – once update lock (U) and intent exclusive (IX) locks square measure uninheritable at lower hierarchy resources within the table at the same time, the update with intent exclusive lock are uninheritable at the table level as a consequence

Schema locks (Sch) – The SQL Server information engine acknowledges 2 sorts of the schema locks: Schema modification lock (Sch-M) and Schema stability lock (Sch-S)

  • A Schema modification lock (Sch-M) are uninheritable once a DDL statement is dead, and it’ll forestall access to the fast object knowledge because the structure of the thing is being modified. SQL Server permits one schema modification lock (Sch-M) lock on any fast object. so as to change a table, a dealing should wait to accumulate a Sch-M lock on the target object. Once it acquires the schema modification lock (Sch-M), the dealing will modify the thing and once the modification is completed and therefore the lock are free. A typical example of the Sch-M lock is associate index reconstruct, as associate index reconstruct is table modification method. Once the index reconstruct ID is issued, a schema modification lock (Sch-M) are uninheritable on it table and can be free solely once the index reconstruct method is completed (when used with on-line choice, index reconstruct can acquire Sch-M lock shortly at the top of the process)

  • A Schema stability lock (Sch-S) is uninheritable whereas a schema-dependent question is being compiled and dead and execution set up is generated. This specific lock won’t block alternative transactions to access the thing knowledge and it’s compatible with all lock modes except with the schema modification lock (Sch-M). Basically, Schema stability locks are uninheritable by each DML and choose question to confirm the integrity of the table structure (ensure that table doesn’t amendment whereas queries square measure running).

Bulk Update locks (BU) – this lock is intended to be employed by bulk import operations once issued with a TABLOCK argument/hint. Once a bulk update lock is uninheritable, alternative processes won’t be ready to access a table throughout the majority load execution. However, a bulk update lock won’t forestall another bulk load to be processed in parallel. however detain mind that victimization TABLOCK on a clustered index table won’t enable parallel bulk mercantilism. A lot of details concerning this can be offered in pointers for Optimizing Bulk Import.

Locking hierarchy:

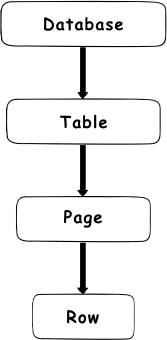

SQL Server has introduced the lockup hierarchy that’s applied once reading or dynamical of information is performed. The lock hierarchy starts with the information at the very best hierarchy level and down via table and page to the row at very cheap level.

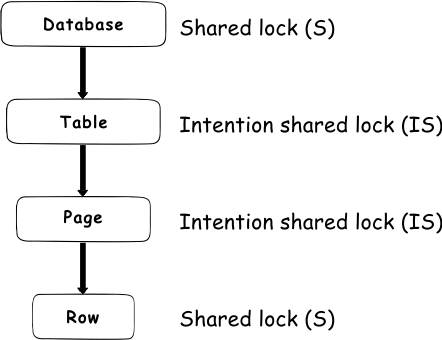

Essentially, there’s perpetually a shared lock on the information level that’s obligatory whenever a dealing is connected to a information. The shared lock on a information level is obligatory to stop dropping of the information or restoring a information backup over the information in use. for instance, once a get statement is issued to scan some knowledge, a shared lock (S) are obligatory on the information level, associate intent shared lock (IS) are obligatory on the table and on the page level, and a shared lock (S) on the row itself

In case of a DML statement (i.e. insert, update, delete) a shared lock (S) are obligatory on the information level, associate intent exclusive lock (IX) or intent update lock (IU) are obligatory on the table and on the page level, associated an exclusive or update lock (X or U) on the row

Locks can perpetually be uninheritable from the highest to all-time low as in this approach SQL Server is preventing a alleged Race condition to occur.

Now that lock modes and lock hierarchy are explained, let’s more elaborate on lock modes and the way those translate to a lock hierarchy.

Not all lock modes may be applied in the slightest degree levels.

At the row level, the subsequent 3 lock modes may be applied:

Exclusive (X)
Shared (S)
Update (U)


To understand the compatibility of these modes, please ask the subsequent table:

                         Exclusive (X) Shared (S) Update (U)
Exclusive (X)         ✗           ✗         ✗
Shared (S)            ✗            ✓               ✓
Update (U)            ✗            ✓              ✗


✓ – Compatible ✗ – Incompatible

At the table level, there square measure 5 differing types of locks:

Exclusive (X)
Shared (S)
Intent exclusive (IX)
Intent shared (IS)
Shared with intent exclusive (SIX)
Compatibility of those modes may be seen within the table below

                        (X)        (S)          (IX)          (IS)        (SIX)
(X)                    ✗      ✗          ✗        ✗           ✗
(S)                    ✗           ✓         ✗              ✓           ✗
(IX)                   ✗      ✗      ✓             ✓           ✗
(IS)                   ✗           ✓          ✓             ✓           ✓
(SIX)                 ✗          ✗        ✗            ✓           ✗


✓ – Compatible ✗ – Incompatible

A Schema lock (Sch) is additionally a table level lock yet, however it’s not an information connected lock

To better perceive the compatibility between these lock sorts, please ask this table:

Lock increase:
In order to stop a state of affairs wherever lockup is victimization too several resources, SQL Server has introduced the lock increase feature.

Without increase, locks might need a big quantity of memory resources. Let’s take associate example wherever a lock ought to be obligatory on the thirty, 000 rows of information, wherever every row is five hundred bytes in size, to perform the delete operation. while not increase, a shared lock (S) are obligatory on the information, one intent exclusive lock (IX) on the table, 1,875 intent exclusive locks (IX) on the pages (8KB page hold sixteen rows of five hundred bytes, that makes one,875 pages that hold thirty,000 rows) and thirty,000 exclusive locks (X) on the rows itself. As every lock is ninety six bytes in size, 31,877 locks can take concerning three MB of memory for one delete operation. Running sizable amount of operations in parallel might need some vital resources simply to confirm that lockup manager will perform the operation swimmingly

To prevent such a state of affairs, SQL Server uses lock increase. this suggests that in an exceedingly state of affairs wherever quite five,000 locks square measure uninheritable on one level, SQL Server can increase those locks to one table level lock. By default, SQL Server can perpetually increase to the table level directly, that mean that increase to the page level ne’er happens. rather than getting varied rows and pages lock, SQL Server can increase to the exclusive lock (X) on a table level.

While this can scale back the necessity for resources, exclusive locks (X) in an exceedingly table mean that no alternative dealing are ready to access fast table and every one queries making an attempt to access that table are blocked. Therefore, {this can |this may| this can} scale back system overhead however will increase the likelihood of concurrency rivalry

In order to produce management over the increase, beginning with SQL Server 2008 R2, the LOCK_EXCALATION choice is introduced as a part of the ALTER TABLE statement

USE AdventureWorks2014
GO
ALTER TABLE Table_name
SET (LOCK_ESCALATION = < TABLE | AUTO | DISABLE > –One of those options)
GO

Each of those choices is outlined to permit specific management over the lock increase process:

Table – this can be the choice for any fresh created table, as by default SQL Server can perpetually execute lock increase to the table level, that conjointly includes divided tables

Auto – this feature permits the lock increase to a partition level once a table is divided. When 5,000 locks square measure uninheritable in an exceedingly single partition, lock increase can acquire associate exclusive lock (X) on it partition whereas the table can acquire intent exclusive lock (IX). just in case that table isn’t divided, lock increase can acquire the lock on the table level (equal to the Table option).

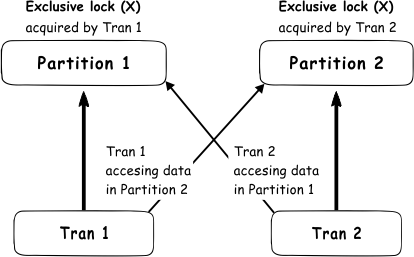

Although this feels like an awfully helpful choice, it’s to be used terribly rigorously because it will simply cause a impasse. in an exceedingly state of affairs wherever we’ve got 2 transactions on 2 partitions wherever the exclusive lock (X) is uninheritable, and dealings tries to access the initiate partition employed by alternative transaction, a impasse are encountered.

So, it’s important to rigorously management the info access pattern, if this feature is enabled, that isn’t straightforward to attain, and this can be why this feature isn’t the default settings in SQL Server

Disable – this feature can utterly disable lock increase for a table. Again, this feature should be used rigorously to avoid the SQL Server lock manager to be forced to use associate excessive quantity of memory.

As it may be seen, lock increase may be a challenge for DBAs. If the applying style needs deleting or change quite five,000 rows right away, an answer to avoid lock increase, and therefore the ensuing effects, is rending the only dealing into a 2 or a lot of dealing wherever every can handle but five,000 rows, as during this approach the lock increase may be evaded

Get data concerning active SQL Server locks

SQL Server provides the Dynamics Management read (DMV) sys.dm_tran_locks that returns data concerning lock manager resources that square measure presently in use, which suggests that it’ll show all “live” locks uninheritable by transactions. a lot of details concerning this DMV may be found within the sys.dm_tran_locks (Transact-SQL) article.

The most vital column used for the identification of the lock square measure resource type, request mode, and resource description. If needed, a lot of columns as further resource for data data may be enclosed throughout troubleshooting

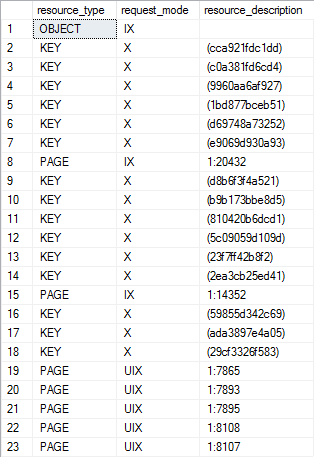

Here is that the example of the question

SELECT resource_type, request_mode, resource_description

FROM sys.dm_tran_locks

WHERE resource_type <> ‘DATABASE’

The wherever clause during this question is employed because the filter on the resource type to eliminate. from the results, those typically shared locks uninheritable on the information since these square measure perpetually gift at the information level

A brief rationalization of the 3 columns conferred here:

resource type – Displays a information resource wherever the locks square measure being uninheritable. The column will show one amongst the subsequent values: computer memory unit, APPLICATION, DATABASE, EXTENT, FILE, HOBT, METADATA, OBJECT, PAGE, KEY, RID

request_mode – displays the lock mode that’s uninheritable on resource

resource_description
– displays a brief resource description and isn’t inhabited for all lock modes. most frequently the column contains the id of the row, page, object, file, etc

Asad Mukhtar
