Free Disaster Recovery solution

Contents of this text:

  • Requirements
  • Configuring reproduction server
  • Configure firewall
  • Enabling VM replication
  • Performing failover
    Conclusion

A DR strategy is a vital a part of your IT surroundings. Notwithstanding the scale of your company, if your daily business depends thereon infrastructure, as an example, a money table application to sell your merchandise and provides the client a price tag, you wish to possess a DR set up. DR plans accommodate multiple steps, like application, property or hardware failure. During this post, we are going to take a more in-depth cross-check however Hyper-V reproduction will facilitate mitigate hardware failures.

Requirements:
Hyper-V reproduction is associate degree integral a part of the Hyper-V role and is offered at no further price. If you’re running free Hyper-V Server Core to virtualize your surroundings, you’ll be able to cowl a part of your DR strategy with Hyper-V reproduction fully free, that is nice, isn’t it? There are not any special needs, and every one you wish area unit 2 straightforward things:

  • Solid association between the servers
  • Storage with tight IOPS

There area unit 2 factors that influence how briskly your association is and the way several IOPS you need:

  • Number of VMs you’re close to replicate
  • How typically you wish to synchronize the information. There area unit 3 options: thirty seconds, five or quarter-hour.

For one among my shoppers with simply 2 production VMs, we tend to used associate degree recent dingle server with customary SATA disks with 7200rpm, designed in RAID10, and a 1Gbps network association between the servers. Everything worked well, and that we were able to employ the recent server, with free Hyper-V Server Core.

Configuring reproduction server:

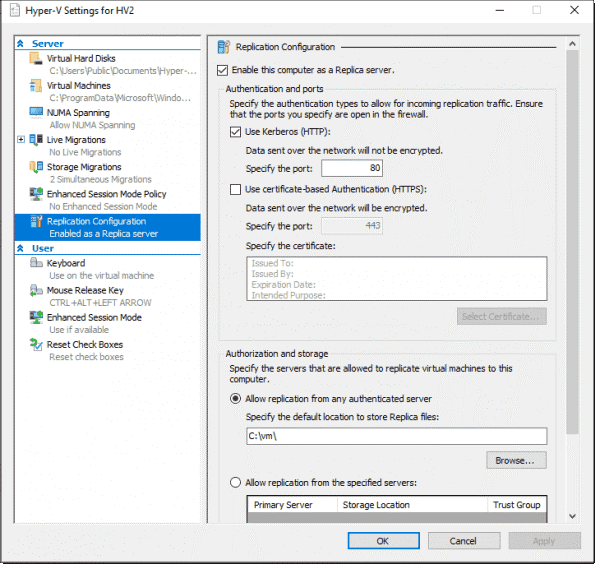

Configuring reproduction servers may be a terribly simple task. In Hyper-V Manager, right-click your Hyper-V server and choose Hyper-V Settings. In Replication Configuration, check changes this laptop as a reproduction server. You’ll be able to select 2 authentication strategies for incoming traffic, Kerberos or HTTPS. In my case, as I actually have each Hyper-V servers joined to a website, I take advantage of Kerberos. Just in case you need encrypted traffic or your servers aren’t domain members, you must pick HTTPS authentication. A sound certificate is needed for HTTPS, either self-signed or issued by CA.

Next, you wish to pick out whether or not the server permits replication from any genuine server, or solely specific ones, and a folder wherever the reproduction files ought to be holding on.

Configure firewall:
There area unit 2 firewall rules created by default:

  • Hyper-V reproduction HTTPS auditor (TCP-In) for Kerberos traffic
  • Hyper-V reproduction HTTPS auditor (TCP-In) for HTTPS traffic

If you left default ports within the Replication Configuration merely change the rule you wish. Otherwise, you wish to update the port within the rule.

Enabling VM replication:
At this time, we tend to area unit geared up to begin replicating. Connect Hyper-V Manager to your primary Hyper-V Server, right-click the VM you wish to duplicate and click on change Replication… A configuration wizard seems that may guide you thru the method. First, specify the name of the reproduction server. In my case, it is HV2.EXIT.local.

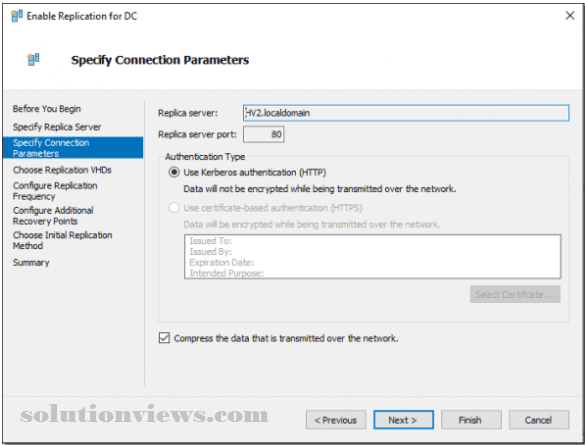

In Specify association Parameters, you’ll be able to solely decide whether or not you wish to compress the traffic or not. The Authentication sort is predicated on what we tend to designed within the Replication Configuration.

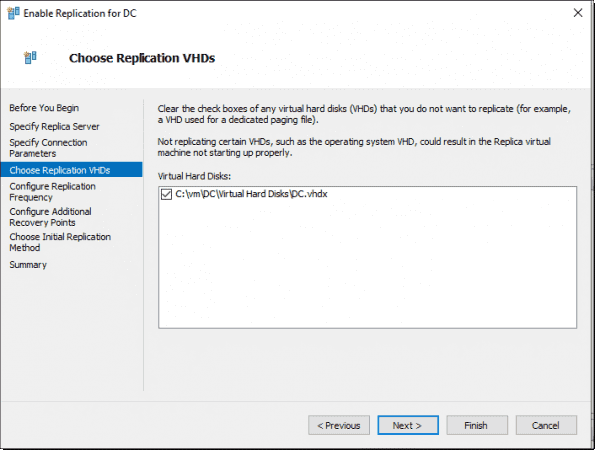

Next, you’ll be able to choose virtual disks to duplicate. Normally, you’d wish to duplicate all disks.

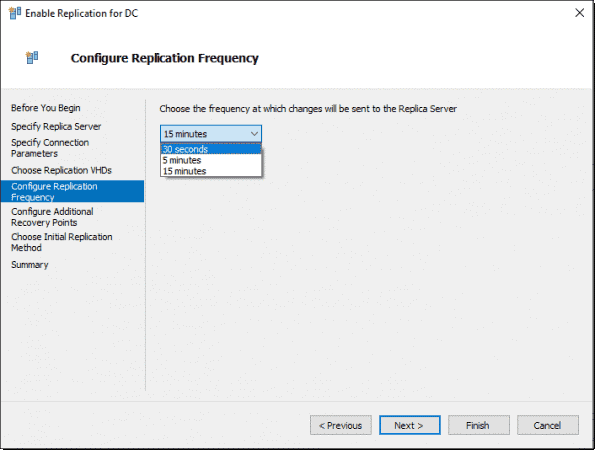

In the next step, choose however typically you wish to duplicate the information. As antecedently mentioned, you’ve got 3 choices.

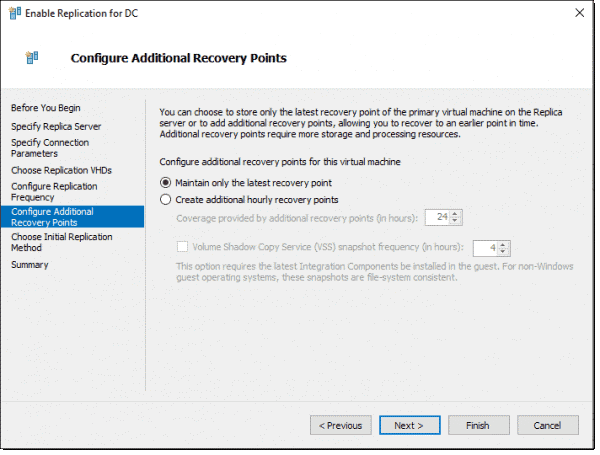

In the opening move, assemble extra Recovery Points, you’ll be able to select whether or not to make extra recovery points and whether or not you wish to make VSS snapshots. VSS snapshots area unit helpful for consistent application recovery points (if the appliance supports VSS). By default, replication solely maintains package consistency.

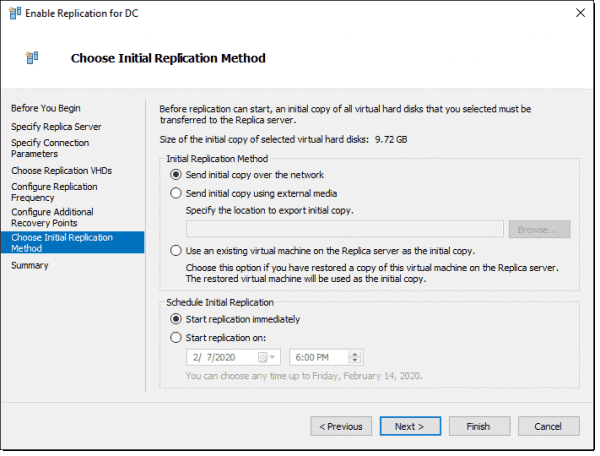

The last step is to assemble the creation of the initial reproduction VM. Just in case you replicate over a WAN association, you will export your VM to associate degree external media instead of transferring all the information over to WAN. in addition, you’ll be able to schedule once to begin the initial replication, as an example, when workplace hours.

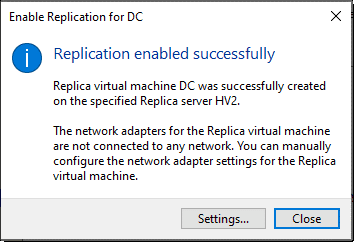

Once the initial replication is finished, you will get the subsequent message.

It says that network adapters aren’t connected to any network. This is often as a result of the reproduction server doesn’t have a virtual switch with constant name. If you produce a virtual switch with constant name that the VM uses on the first server, it’ll be mechanically connected to the reproduction server.

Performing failover:
Once the repetition is enabled and also the initial transference is complete, we will perform the failover process. There area unit 2 options:

  • Test Failover – accustomed verify that the reproduction VM will with success begin. This selection creates {a duplicate a reproduction} of the replica VM and is deleted once the take a look at is complete.
  • Failover – utilized in case problems occur with the first Hyper-V server.

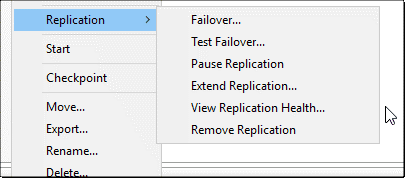

To perform the failover merely right click the reproduction VM and choose Failover… or take a look at Failover…

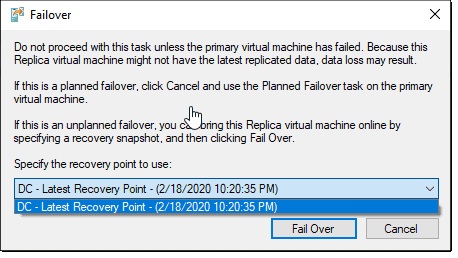

A confirmation message can seem and warn you to not perform the failover unless the first VM has failing. If you designed the replication to possess a lot of recovery points, you’ll be able to choose to failover to any of them. Click Fail Over to finish the method.

After playacting the failover, the VM can begin mechanically. The VM currently encompasses a stop created, and its failover standing is complete. Once you verified that everything works, you’ll be able to take away the stop by right-clicking the VM and choosing Replication -> take away recovery points…

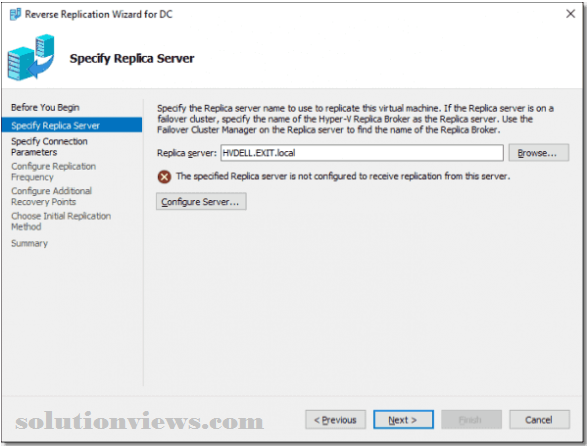

At this time, the assembly is currently running on the reproduction VM. Once you fix the problem together with your primary server, you’ll be able to reverse the replication back to your primary hardware. Note that you just got to assemble the server as a reproduction server, the wizard can warn you once more, and supply to perform the configuration.

Once the reverse replication is finished, the present server can become your primary server. If you wish to induce the VM back to the first server, you wish to perform another failover.

Conclusion:
Hyper-V reproduction may be a nice, free DR feature and is straightforward to assemble and use. Just in case you want to possess the reproduction VM during a third server, this is often conjointly attainable with the extended replication feature. For a lot of info regarding Hyper-V reproduction, you’ll be able to discuss with Microsoft docs web site. There you’ll notice a commentary written for Windows Server 2016; however this may even be applied to Windows Server 2019.

Asad Mukhtar
