How To Connect To a Remote SQL Server

In this article, we are going to make a case for step by step the way to connect remotely to a SQL Server specific instance. Remote access is that the ability to urge access to a SQL Server from a distant distance so as to control information that square measure set thereon SQL Server.

There square measure 2 forms of changes that should be set before connecting to the remote SQL Server. These settings square measure vital as a result of while not them the association to the remote SQL Server won’t be ready to be with success created

Configuration settings:

  • The SQL Server instance to permit the protocol being requested
  • Allow access through the Window Firewall

In order to permit access to SQL Server instance, we’ve got to change TCP/IP protocol that isn’t enabled by default. TCP/IP (Transmission management Protocol/Internet Protocol) could be a set of protocols developed to permit networked computers to share resources over the network. it absolutely was developed by DARPA beneath the ARPANET within the early Nineteen Seventies.

In order to ascertain a triple-crown remote association is to line up acceptable ports through the Window Firewall. In SQL Server there square measure 2 forms of instances. 1st could be a default instance and also the second could be a named instance. to attach to the default instance of info Engine, or named instance that’s the sole instance put in on the machine, the protocol port 1433 is that the solely port that you simply have to be compelled to specify.

But if you have got multiple name instances put in on your machine, to attach with one amongst them, we have a tendency to should offer a port range that resembling acceptable instance name. By default named instance used dynamic port, which suggests that each time once the info Engine starts new port range is appointed. owing to that it’s tough to set up Windows Firewall to change access.

In order to resolve this drawback, there’s a SQL Browser service, which give the protocol port range that corresponds to the named instances. The SQL Browser services use UDP port 1434. currently we have a tendency to met with the essential matters regarding remote association, let’s continue with the setup procedure.

Enabling TCP/IP protocol:

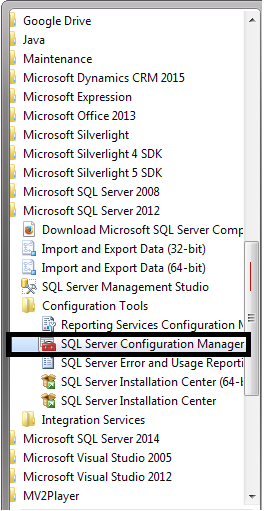

The first step is to change TCP/IP protocol on the SQL Server service. Open the SQL Server Configuration Manager within the Configuration Tools folder beneath the Microsoft SQL Server folder:

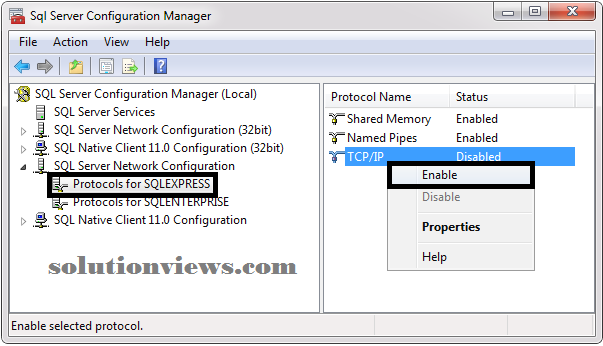

From the SQL Server Network Configuration node, choose the Protocols item for the acceptable SQL Server. within the details pane, right click the TCP/IP item and choose the change option:

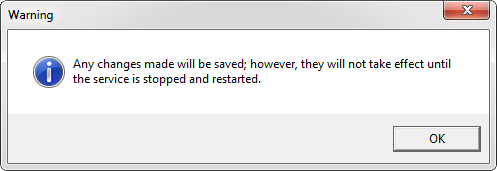

After this step the Warning box crop up during which informs United States that changes that square measure created won’t get till following time service is started.

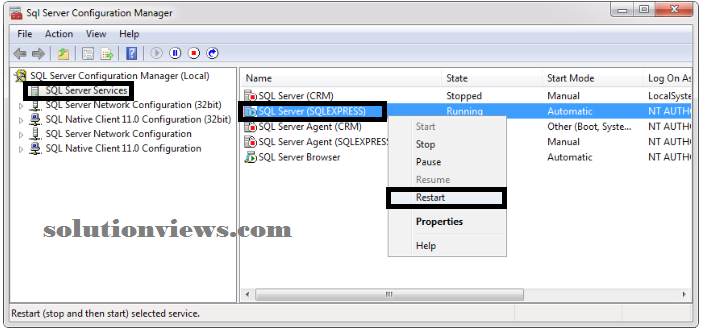

In order for the changes get, from console pane, choose the SQL Server Services and from the main points pane, right click the SQL Server (SQLEXPRESS) info engine instance and click on the Restart option:

Now the service started with TCP/IP enabled, however still can’t connect remotely till we have a tendency to set up the Windows Firewall.

Configuring Windows Firewall:

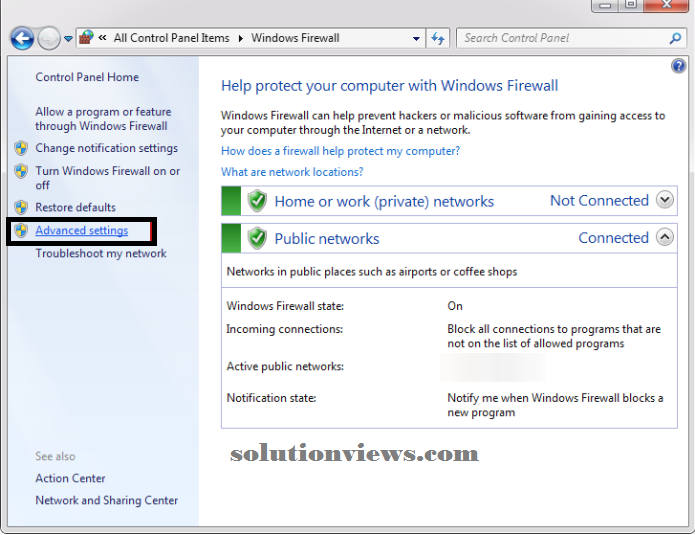

From the electrical device select Windows Firewall and click on the Advanced settings or simply sort wf.msc in Search program and files from the beginning menu:

  • Inbound Rules: you’ll be able to permit or block traffic tries to access the pc that matches sure criteria within the rule. By default incoming traffic is blocked, to permit traffic to access pc, you wish to make incoming rule.
  • Outbound Rules: you’ll be able to permit or block traffic originating from specifying pc making rules. By default outgoing traffic is allowed, thus you wish to make the rule that block outgoing traffic.

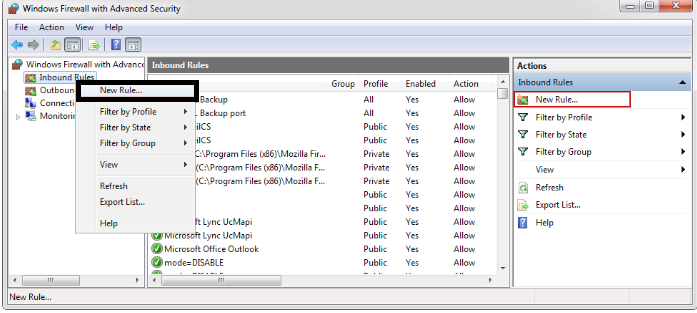

In the Windows Firewall with Advanced Security, click the incoming Rules from the left pane, right click incoming Rules and choose the New Rule or from the Actions pane click the New Rule:

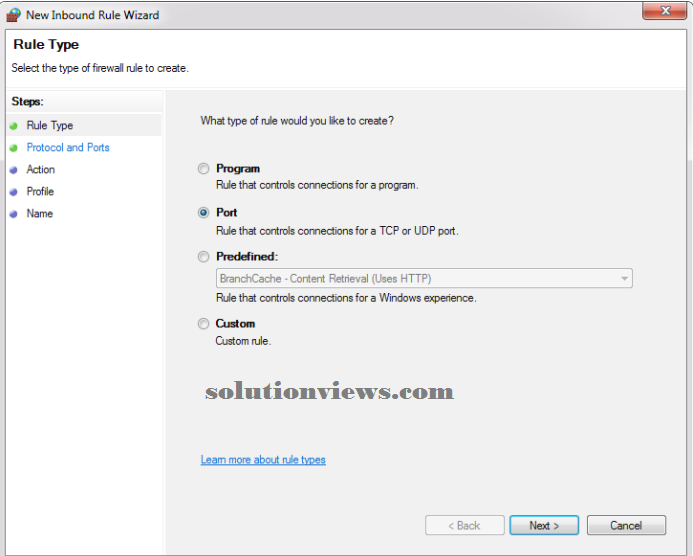

On that you may click, it’s up to you. In each case the new incoming Rule Wizard can seem. Beneath the Rule sort select Port and click on following button:

From this link you’ll be able to additional sophisticated of all rule sorts that square measure shown within the image on top of.

In the Protocols and Ports there square measure a many choices that you simply will select, reckoning on which sort of protocols you decide on.

If you’re inquisitive what’s the distinction between the protocol and UDP protocols you’ll be able to notice from this link.

As we have a tendency to mentioned at the start of the article protocol is employed for the default instance and named instance if is that the solely instance put in on the machine and default port is 1433.

  • All native ports: Rule applies on all ports from the chosen protocol.
  • Specific native ports: within the text box you specify a port or set of ports to that the rule applies.

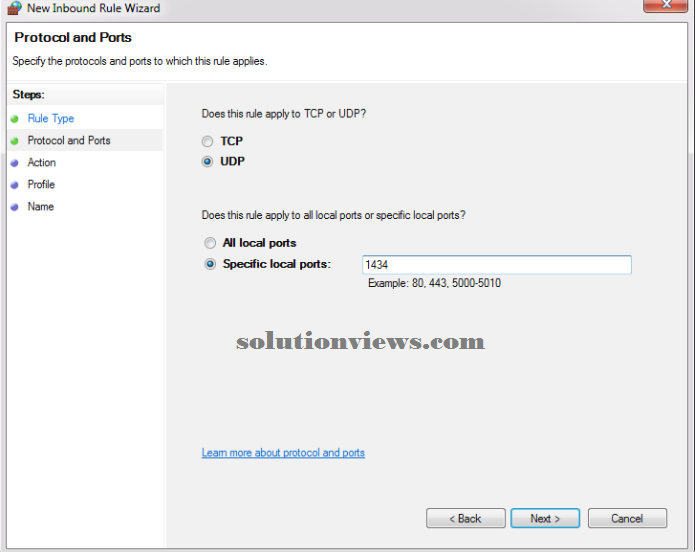

For this instance, choose the UDP protocol and within the Specific native ports enter port range 1434. To proceed with the settings SQL Browser services, click following button:

  • Allow the connection: Includes all connections secure and insecure.
  • Allow the association if it’s secures: Includes solely association if it’s created through a secure channel.
  • Block the connection: Blocks all connections secure and insecure.

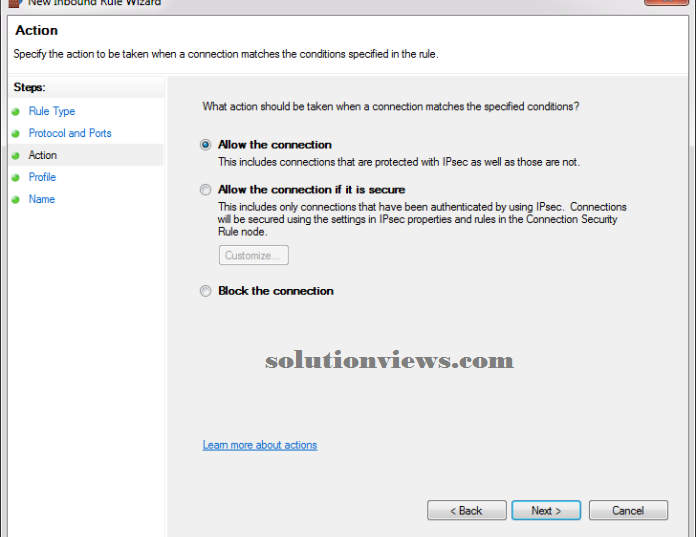

In the Action dialog select permit the association and click on following button:

  • Domain: The setting is applied only if a pc is connected to a site.
  • Private: The setting is applied once a pc is connected to a network that’s known as a personal network.
  • Public: The setting is applied once a pc is connected to untrusted public network.

In the Profile dialog select all 3 profiles and click on the Next:

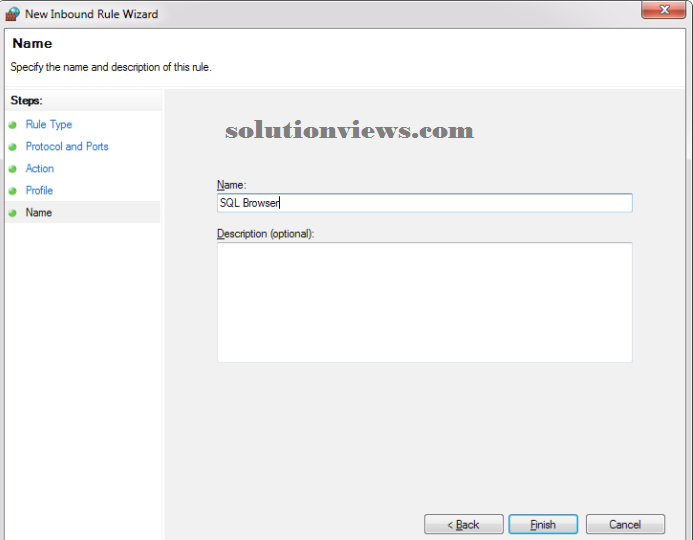

On this step offer the rule a reputation and click on the end.

Note: once we offer the name of the rule, please write some descriptive name that you simply will perceive later, once you have to be compelled to notice them or edit within the incoming Rules list.

Now produce a permit rule for the info engine instance.

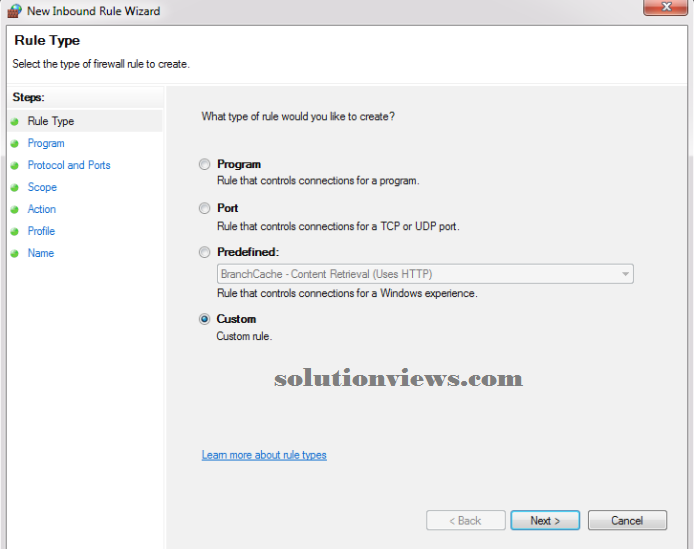

Go to the New Rule and from the Rule sort choose the Custom rule:

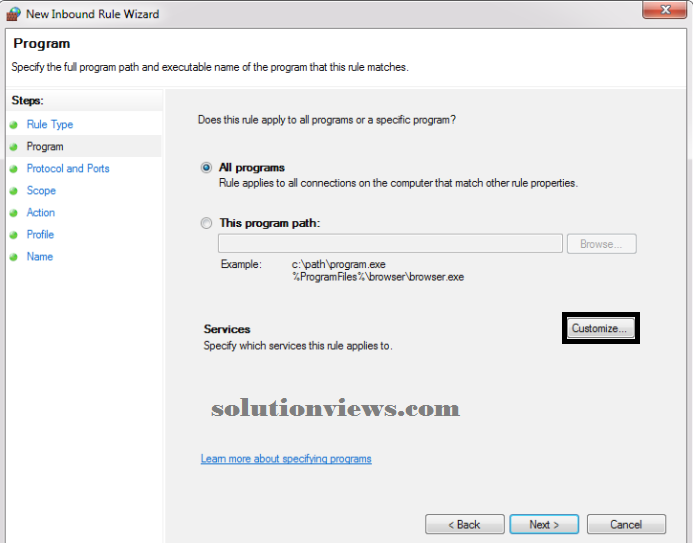

In the Program beneath the Services click the customize button:

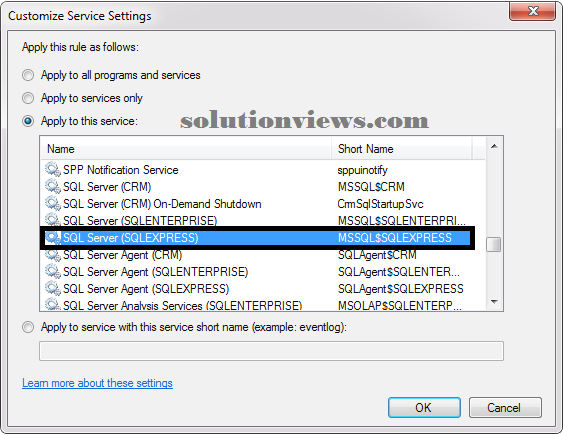

From the customize Service Settings beneath Apply to the current service choose info engine instance service and click on the OK button:

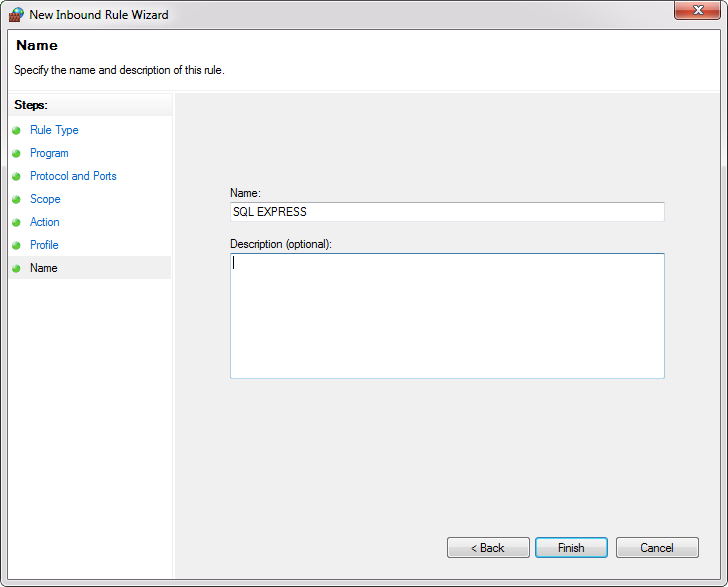

Then click following all the thanks to the Name dialog, offer rule a reputation and click on the Finish:


Now once all rules square measure came upon, you’re able to hook up with remote SQL Server.

Start the SQL Server, within the dialog window for the Server name enters the name of the instance that you simply need to attach with. From the Authentication sink box, choose the SQL Server Authentication and for the sector Login and also the watchword enter your credentials then click the Connect button
