Virtualization: 3 in 1 > usage of Mikrotik + Squid Proxy + Radius on lone mechanism to save possessions

Currently, days, obtaining sensible hardware isn’t an enormous deal. It will be saved goodish quantities of power consumption, reduced heat issue, simple to animal disease multiple VM victimization numerous tools like Vcenter / VEEAM (my favorite), VM adventurer, live migrations from one Virtual Server to a different, Backup & Restore becomes terribly simple and also the list goes on . . .

Recently I did Associate in the Nursing installation of a network wherever they were low in hardware resources however still they needed to utilize the advantages of Mikrotik Router OS with an external Squid proxy server and additionally the Radius request Server. thus in total, they needed a minimum of three physical machines, however, I managed to put in all of them on single server victimization Virtualization technology of VMWARE ESXi five.x (64bit) and it worked thus nice 🙂
There is however I did it.

Note: as a result of your time shortage, I’m simply supplying you with a plan however it is done, I’m not writing in pin purpose details on a way to connect each machine with Virtual/Physical switches. i will be able to compose it before long.

Hardware Used for the Example:

IBM Xseries 3650 XEON twin Processors with Quad Cores p/p

3.5″ 15krpm small computer system interface in RAID ten-mode (300GB x 6) (a lot of quicker drives (like 10-15krpm) you have got, the higher result you may be able to succeed. ideally in RAID mode, either ten or zero, rely on your management and goals, during this example I used 15krpm small computer system interface HDDs with the dedicated RAID controller. I tested it on IBM x-series with RAID0 and located RAID zero far quicker with 15krpm however it’s not redundant, one drive fails and your whole RAID can go down, thus if you wish redundancy, go along with a minimum of RAID five or RAID ten (Recommended), Raid one is additionally sensible because it mirrors every drive, however, needs further drives and additionally for proxy, it’s useless to use mirroring because it would be requiring a lot of reading/write burden on the controller, oh GOD, during which argument I got into :p)

16GB RAM (Mikrotik doesn’t need a lot of RAM if truth be told it formally supports most of 2G, however, Radius and Squid do need some sensible quantity of RAM, I dedicated eight GB to SQUID, 4GB to Radius, one GB to Mikrotik)

4 Network Adapters ( during this article, due to time shortage, I actually have solely mentioned how to add 2 network adapters for local area network and WAN link victimization virtual Switch school, however, you’ll add a lot of as per your requirements)

Software Used:

1) Vmware ESXi five.x 64bit as a Virtual Hypervisor Server

Guest OS put in during this virtual server’s area unit as following

2) Mikrotik Router-OS five.22 [1GB Ram +100GB virtual HDD assigned to the current VM]
3) Ubuntu ten.4 for SQUID Proxy (2.7) [8GB Ram +500GB virtual HDD assigned to the current VM]
4) Ubuntu ten.4 for Radius Manager request System [4GB Ram +200GB virtual HDDassigned to the current VM]

TIP: you’ll use the subsequent RAID calculator to judge what quantity house you may be obtaining numerous RAID modes.

First, install VMware ESXi. you’ll get its free edition from http://www.vmware.com, simply register and transfer the most recent version, it’d be in .is format, merely burn it to CD, and install it on your server, it’s terribly straightforward to put in the ESXi, nothing a lot of then simply clicking NEXT

After ESXi puts in, tack together information science address on that, thus you’ll manage it victimization its consumer known as VSphere consumer.

To shorten the story I’m victimization solely 2 interfaces for the Mikrotik, local area network, and WAN. during this example (shorten version) ESXi have 2 interfaces connected, one with the local area network user switch and an alternative interface connected with the WAN (physically)

Creating Virtual Switch and bind Network Adapters with this switch.
Go to the Configuration tab

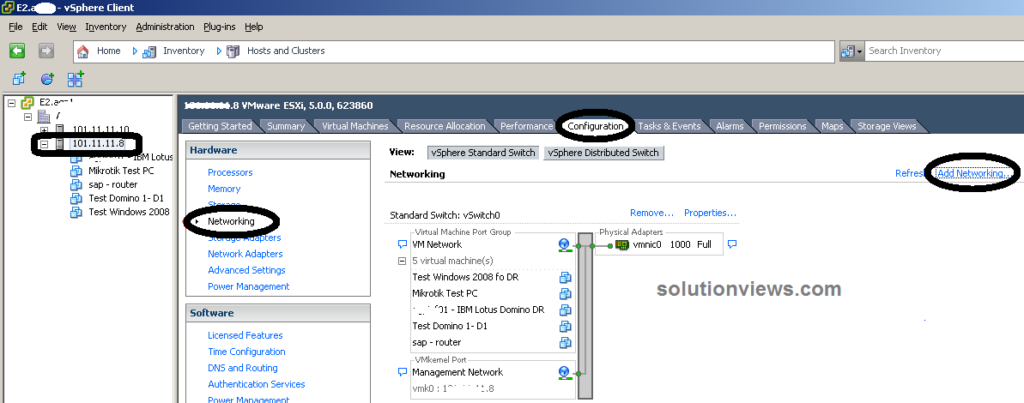

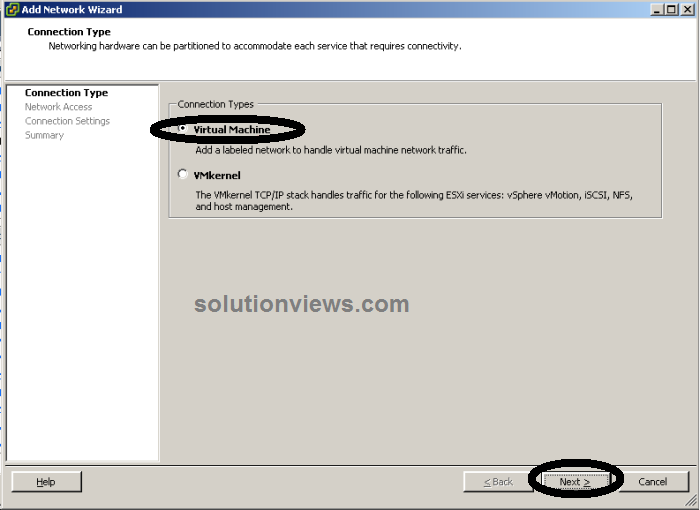

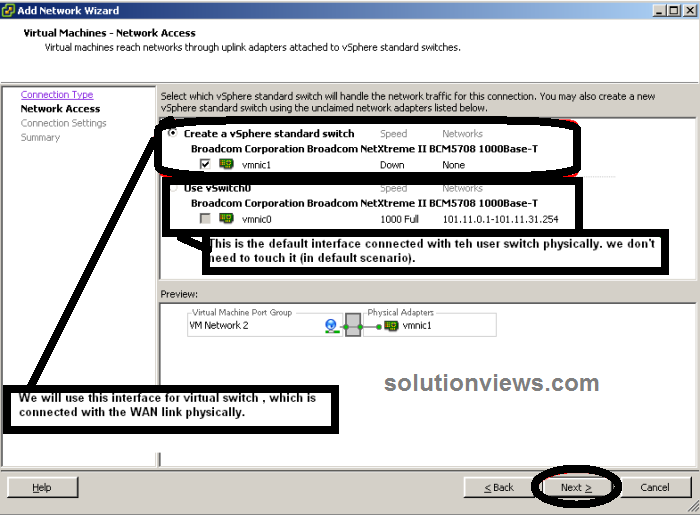

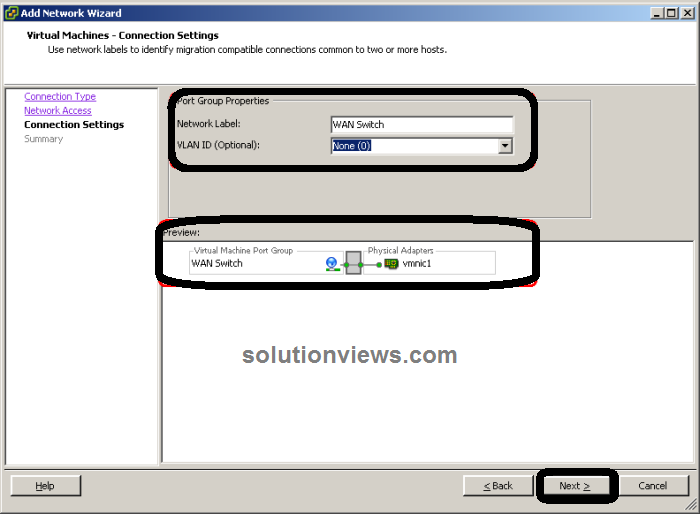

From the list seem in the Hardware section, click on Networking and click on  ADD Networking
As shown within the image below

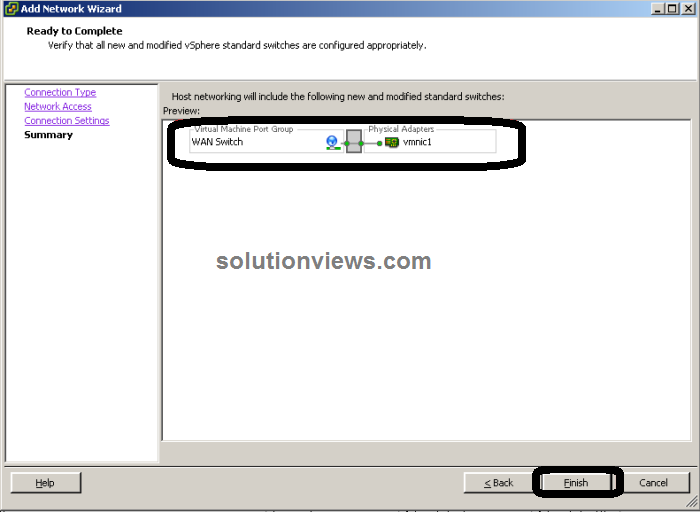

Ok, our virtual switch is made.

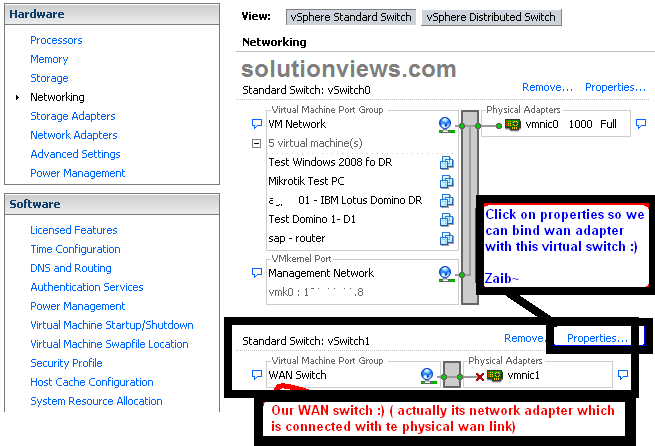

Now its time to bind our WAN adapter during this switch. (So it will later be used for WAN for all hosts we are going to requiring for)

Click on the Properties

Done.

Creating Mikrotik in VM and assignment network adapters:

Now produce a new Virtual Machine for your Mikrotik.

Select necessary hardware that you just needed pro re nata per user load. as an example
Mikrotik = one C.P.U. / one GB RAM / ten GB HDD /

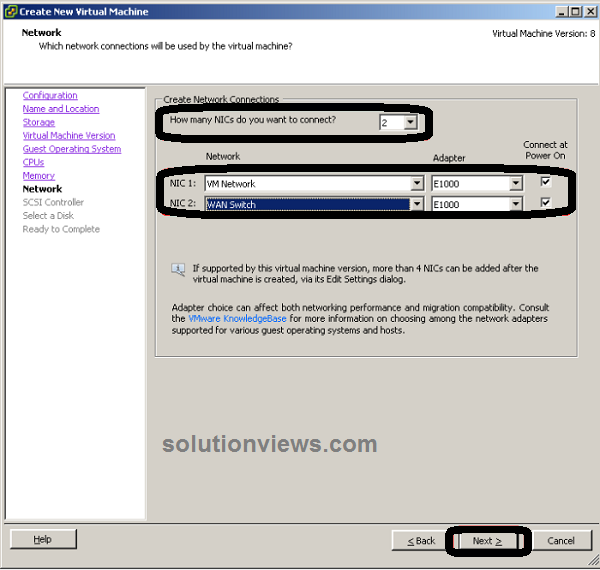

In-Network Adapter Section, by default only 1 adapter is else, you have got to feature another adapter by choosing the number of adapters in the drop listing.
As shown within the image below.

Once the configuration is completed. merely install the Mikrotik in freshly created hosts you only created in higher than steps.
After configuration is complete, review all over again the host settings,
As shown within the image below.

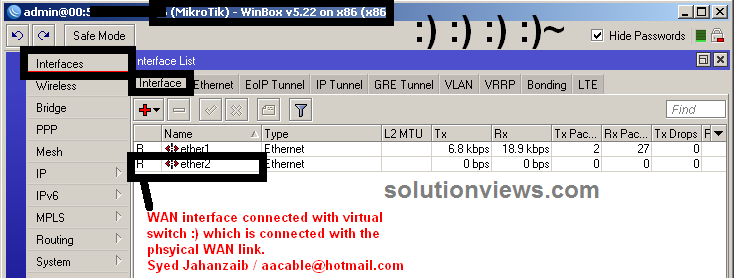

After the installation is completed, connect with Mikrotik with WINBOX and appearance for interfaces
as shown within the image below.
