Step by Step Setup Dynamics CRM Server/ Windows Server/ SQL Server Part 2

Hardware and package needs for putting in SQL Server 2014

Component:              Development*
Memory:                   8-GB RAM or a lot of
Processor:                 Speed Recommended: three.0 gigacycle per second or quicker
Processor:                 Type x64 Processor: AMD Opteron, AMD Athlon sixty four, Intel

                                  Xeon with Intel EM64T support, Intel Pentium IV with EM64T

                                   support

Insert the SQL Server 2014 installation videodisk. Before you begin to put in the SQL server, install the NetFx3 feature, otherwise you’ll get error whereas the installation is current. to put in the NEtFx3, sort the subsequent command in prompt as shown within the exposure below. ensure you have got inserted the installation media.

c:\> dism /online /enable-feature /featurename:netfx3 /all /source:d:\sources\sxs

To start the SQL server installation, click the primary choice once choosing installation tab from the installation center as shown below. Since this is often reaching to be new SQL server installation choose the primary choice

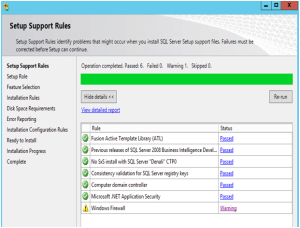

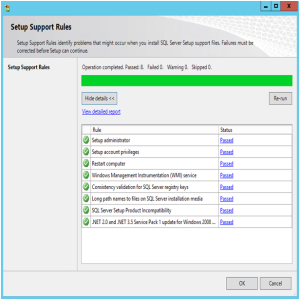

The installation can then check all the pre-requisites that square measure needed to put in the SQL server. If everything is ok, you’ll see inexperienced checks as shown below. Click OK.

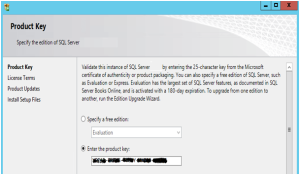

Enter the merchandise key and click on Next. Or select analysis edition and click on Next.

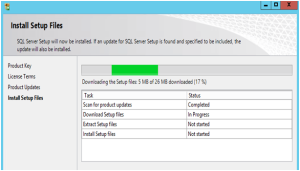

Accept the license terms and click on Next. Check to incorporate SQL server product updates and click on Next.

The installation wills the pre-requisite checks another time as you’ll see below.

On the Setup Role page, select SQL server feature installation and click on Next.

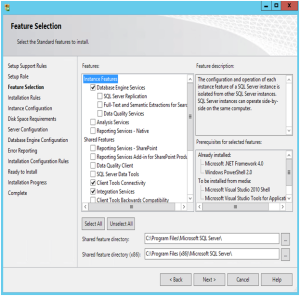

Select the specified SQL options and click on Next.

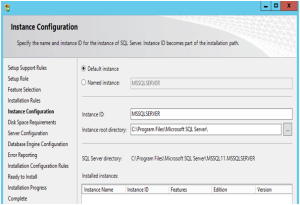

Under Instance Configuration, select Default instance. you’ll conjointly outline custom instance name. Similarly, you have got the choice to settle on the placement wherever the instance is going to be keep. i will be able to leave the defaults and click on Next button.

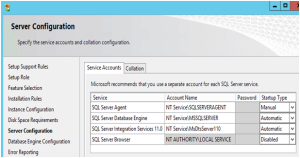

Under Server Configuration, review the Service Accounts; i will be able to leave the defaults. Here, you’ll conjointly use Active Directory user for varied SQL services.

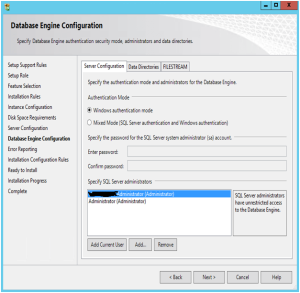

Under information Engine Configuration, select Windows authentication mode. you furthermore may have choice to select each windows authentication and SQL server authentication. Then, add the users WHO are going to be managing this SQL server and click on Next.

After the installation is complete, click shut. you’ll currently begin making databases.

Microsoft Dynamics CRM 2015 Installation

Download the Dynamics CRM 2015 Server setup files.

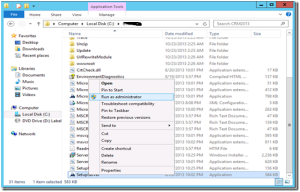

Run Microsoft Dynamics CRM Server Setup by navigating to the directory. it’s suggested to try to to it with‘Run as Administrator’

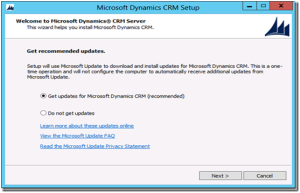

3.Welcome to Microsoft Dynamics CRM Server 2015 Setup page
On this page, we have a tendency to suggest that you just click Get updates for Microsoft Dynamics CRM, to form certain that Setup has the foremost recent installation files. Click Next.

If there’s no update required you’ll proceed with the setup by clicking Next.
Product Key data: consequent step is to enter the merchandise key. you will insert a sound industrial product key or use one among the subsequent 90-day trial keys. Microsoft Dynamics CRM Workgroup Server 2015 (5 CAL limit):NX77Y-BTBCV-JP3T3-8W7JH-94QJPMicrosoft Dynamics CRM Server 2015 (no CAL limit):CQWW3-TNXBF-HRQWC-CVTW9-M968H
License Agreement page, On the License Agreement page, review the data and, if you settle for the license agreement, click I settle for this license agreement, so click I settle for.
Install needed parts If Setup detects that parts square measure missing, the Install needed parts page seems.
If you have got already put in the specified parts, this page won’t seem.
If you have got not put in the specified parts listed, you’ll install them currently. Click

Install. Once the parts square measure put in, the standing column can modification from Not put in to put in, and you’ll click Next to continue.
Note: If you’re prompted to restart the pc, do so, so begin Setup once more.

Once with success putting in all the specified parts, press Next to continue with the setup.
Select Installation Location On the choose Installation Location page, settle for the default location or enter a unique file installation location, so click Next.

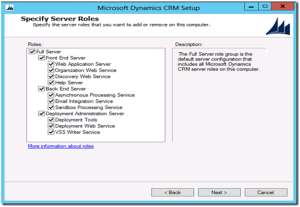

Specify Server roles, Here you’ll specify the server roles to put in within the current server. To make the most of extra performance and scaling advantages in enterprise deployments, think about distributing specific server practicality, components, and services or server roles on completely different servers. Microsoft Dynamics CRM 2015 supports distribution and scaling of server roles across multiple servers. There square measure two new services as a part of the rear finish Server roles and therefore the readying Administration Server roles. These square measure the e-mail integration Service and therefore the VSS author service.

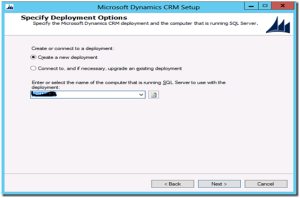

10. Specify readying choices On the Specify readying choices page, choose the name of the pc that’s running SQL Server to use the readying box, sort or choose the instance of Microsoft SQL Server that may be wont to store the Dynamics CRM information (MSCRM_CONFIG) For a brand new installation of Dynamics CRM, we have a tendency to choose the choice produce a brand new readying.

Select the structure Unit On the choose the structure Unit page, click Browse to show your Active Directory structure. choose the placement wherever you would like the Microsoft Dynamics CRM structure unit to be put in into, click OK, so click Next. Microsoft Dynamics CRM security teams square measure created during this structure unit.

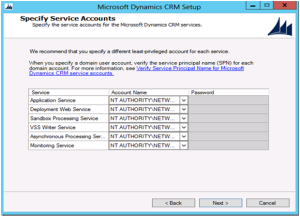

Specify Service Accounts On the Specify Service Accounts page, choose the safety accounts for the Microsoft Dynamics CRM services, so click Next.


For each service, we have a tendency to powerfully suggest that you just choose a low-privilege domain account that’s dedicated to running these services and isn’t used for the other purpose.

Additionally, the user account that’s wont to run a Microsoft Dynamics CRM service can’t be a Microsoft Dynamics CRM user. This domain account should be a member of the Domain Users cluster.

Additionally, if the Asynchronous Service and Sandbox process Service roles square measure put in, like during a Full Server or a side Server installation, the domain account should a member of the Performance Log Users security cluster.

If you choose to run the ASP.NET service below a site user account that’s not a site administrator or a neighborhood administrator, you want to set a neighborhood security policy once you put in Microsoft Dynamics CRM Server 2015 for the ASP.NET service to figure properly. Also, looking on the arcanum policies that you just have enforced for your organization, the arcanum for the user could expire

There square measure a few of latest services in CRM 2015

Monitoring Service   Monitors all Microsoft Dynamics CRM 2015 server roles  that square measure put in on the native laptop. This service is employed to notice terminated digital certificates that will have an effect on Microsoft Dynamics CRM 2015 services that square measure running within the readying.

VSS author service The Microsoft Dynamics CRM VSS author service provides associate interface to backup and restore Dynamics CRM knowledge by mistreatment the Windows Server Volume Shadow Copy Service (VSS) infrastructure.

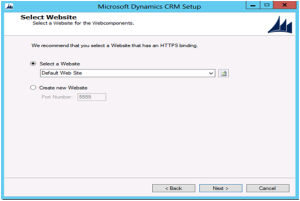

Select an online website On the choose an online website page, click produce a brand new computing device or click choose an online website and choose a web site from the list. By default, Setup can use the default web site.
Important: we have a tendency to powerfully suggest that you just verify the standing of the present web site before you specify Setup to use associate existing web site. we have a tendency to powerfully suggest that the web site you choose is organized for SSL. For a lot of data see the IIS documentation. throughout the installation, Setup will bind the Microsoft Dynamics CRM application to the HTTPS web site. If you choose a network port apart from a default port, make sure that the firewall doesn’t block the port.

When you choose the produce a brand new computing device choice, Setup creates a brand new web site for Microsoft Dynamics CRM. you’ll specify the subsequent option:

Port Number: sort the TCP port range that Microsoft Dynamics CRM purchasers can use to attach to the Microsoft Dynamics CRM Server 2015. The default port range is 5555. Click Next

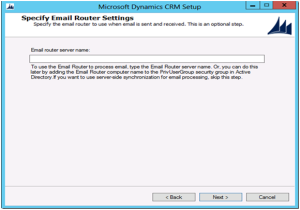

14. Specify E-mail Router Settings On the Specify E-mail Router Settings page, within the E-mail Router server name box, sort the name of the pc wherever the e-mail Router are going to be put in.

This laptop can route Microsoft Dynamics CRM email messages. If you’ll not install the e-mail Router you’ll leave this box blank. However, if you put in the e-mail Router later you want to add the pc wherever the e-mail Router service is running after you use native System, or if you employ a site user account, the account, to the PrivUserGroup security cluster. Click Next

Note: If you wish to use Server facet Synchronization or don’t want to specify the e-mail router name you’ll leave it blank and click on Next

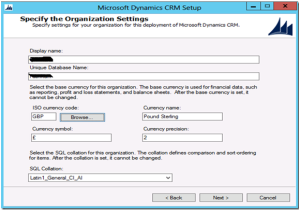

Specify the Organization Settings

On the Specify the Organization Name page, specify the subsequent data.

In the Display Name box, sort the name of your organization.
In the Unique information Name box, {you will |you’ll |you’ll be able to} keep the name that’s mechanically generated otherwise you can blood group distinctive name that has got to be restricted to thirty characters. areas and extended characters don’t seem to be allowed.
Under ISO currency code, click Browse, choose the ISO currency code that you just can use because the base currency for the organization within the list, so click OK.
You can modification the currency’s image, name, or exactitude.
In the SQL collation list, keep the default choice or choose a unique information collation that the organization information can use to kind and compare knowledge characters. Click Next.
Important
After Setup is complete, you cannot modification the information collation, base ISO currency code, or the organization distinctive name. However, you’ll modification the bottom currency name and base currency image.

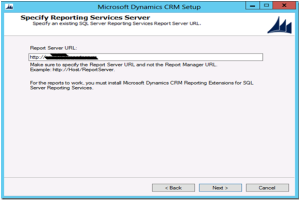

Specify coverage Services Server on the Specify coverage Services Server page, sort the Report Server address. Ensure that you just use the Report Server address, not the Report Manager address. To verify that you just square measure mistreatment the right address, during a browser, sort the Report Server address because the address. Click Next

Help U.S. Improve the client expertise. On the assistance U.S. Improve the client Experience page, choose whether or not you would like to participate within the client expertise Improvement Program, so click Next
Select Microsoft Update choice page On the choose Microsoft Update choice page, you want to choose either of the subsequent choices. Use Microsoft Update once I check for updates (recommended) – By choosing this feature, Microsoft Dynamics CRM Server can use the Microsoft Update settings on the pc. I don’t wish to use Microsoft update- you ought to solely choose this feature if the pc uses another methodology to put in updates like by mistreatment Microsoft Windows Server Update Services (WSUS).

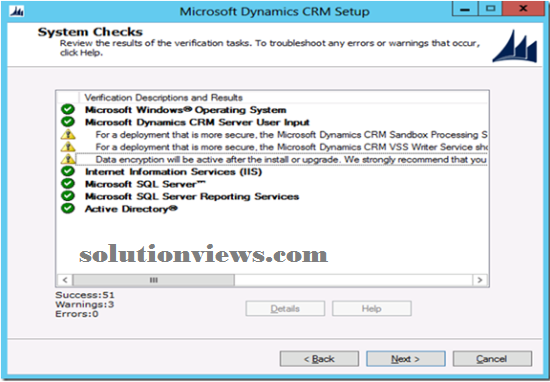

System Checks. This page could be a outline of all needs and suggestions for a eminent installation. Errors should be resolved before installation will continue. If no errors, or solely warnings seem, you’ll continue with the installation. To do this, click Next.

Ready to Install Microsoft Dynamics CRM, Review the able to Install Microsoft Dynamics CRM page, and so click Back to correct any warnings. After you square measure able to continue, click Install.59 60

Install Microsoft Dynamics CRM 2015 Reporting Extensions
You must complete Microsoft Dynamics CRM Server Setup before you run CRM coverage Extensions Setup. you want to run Microsoft Dynamics CRM coverage Extensions Setup on a laptop that includes a supported version of Microsoft SQL Server coverage Services put in

You can find the setup file from ..\Server\amd64\SrsDataConnector folder, double click SetupSrsDataConnector.exe.

Welcome to Microsoft Dynamics CRM coverage Extensions Setup chooses whether or not you would like to update Microsoft Dynamics CRM Server Setup. we have a tendency to suggest that, if updates square measure offered, you let Setup transfer the newest version.
To do this, click Get updates for Microsoft Dynamics CRM, wait till the update method is complete, so click Next

License Agreement Review the data and, if you settle for the license agreement, click I settle for this license agreement, so click I settle for.
Install needed parts If Setup detects that parts square measure missing, the Install needed parts page seems.
If you have got already put in the specified parts, this page won’t seem.
If you have got not put in the specified parts listed, you’ll install them currently. Click Install. Once the parts square measure put in, the standing column can modification from Missing to put in, and you’ll click Next to continue.

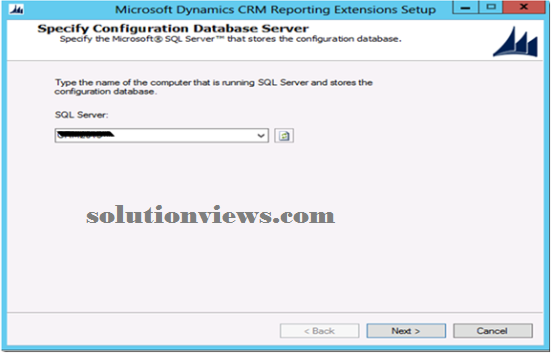

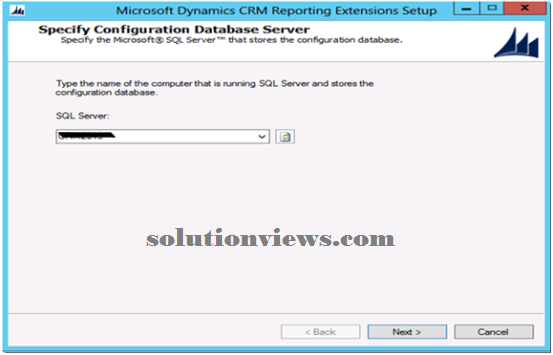

Specify Configuration information Server If you’re mistreatment the default instance of the SQL Server, enter the name of the pc that’s running SQL Server and contains the Microsoft Dynamics CRM configuration information that’s named MSCRM_CONFIG, so click Next. Note: If you’re not mistreatment the default SQL Server instance,

Specify SSRS Instance Name choose a Microsoft SQL Server coverage Services instance that may be used for Microsoft Dynamics CRM coverage, so clickNext.61

Select Microsoft Update choice whether or not you would like to use Microsoft Update for checking for updates for your Microsoft merchandise, and click on Next. We suggest that you just use the Microsoft Update to ascertain for updates as a result of this keeps your laptop up-to-date and secure.
Select Installation Location Click Browse, and choose a path wherever you would like to put in CRM coverage Extensions, so click Next.

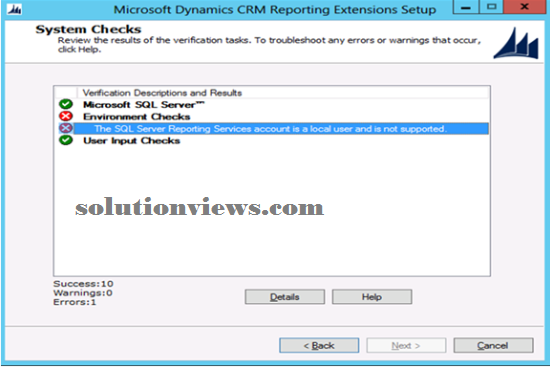

System Checks this page could be a outline of the necessities for a eminent CRM coverage Extensions installation. Errors should be corrected before installation will continue. All errors should be resolved. If no errors or solely warnings seem, you’ll continue with the installation. To do this, click Next.You may get the below error id the Microsoft SQL Server 2014 coverage Service was put in via default settings- then the service account is ready to Report Server62.

To resolve the problem, open the coverage services configuration manager and update the Service Account to one thing else like “NetworkService”Once you click on Apply, you’ll be prompted for the File Location and therefore the arcanum of the rear encoding Key. Click Apply and ExitThe table below summarizes the account and provides recommendations for mistreatment the service accounts for coverage Service.For best results, specify associate account that has network association permissions, with access to network domain controllers and company SMTP servers or gateways. the subsequent table summarizes the accounts and provides recommendations for mistreatment them.63

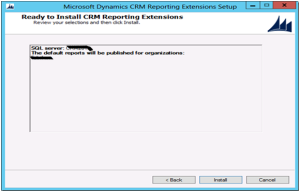

10. Able to install Microsoft Dynamics CRM coverage Extensions Review this page, so click Back to correct any errors. after you square measure able to continue, click Install.

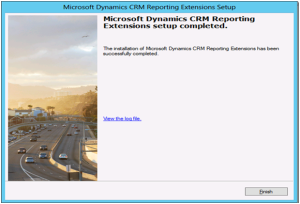

Microsoft Dynamics CRM coverage Extensions Setup Completed Click end
